Micro Rain MR50

Micro Rain MR50
Micro Rain MR50
Micro Rain MR50
Micro Rain MR50
Micro Rain MR50
See video

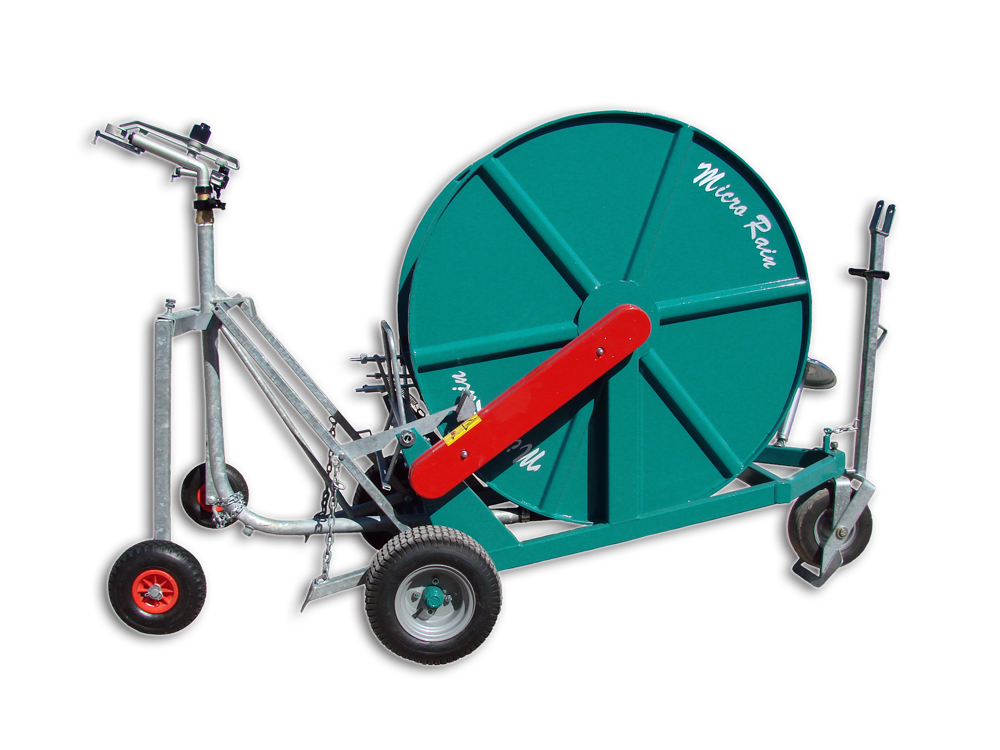

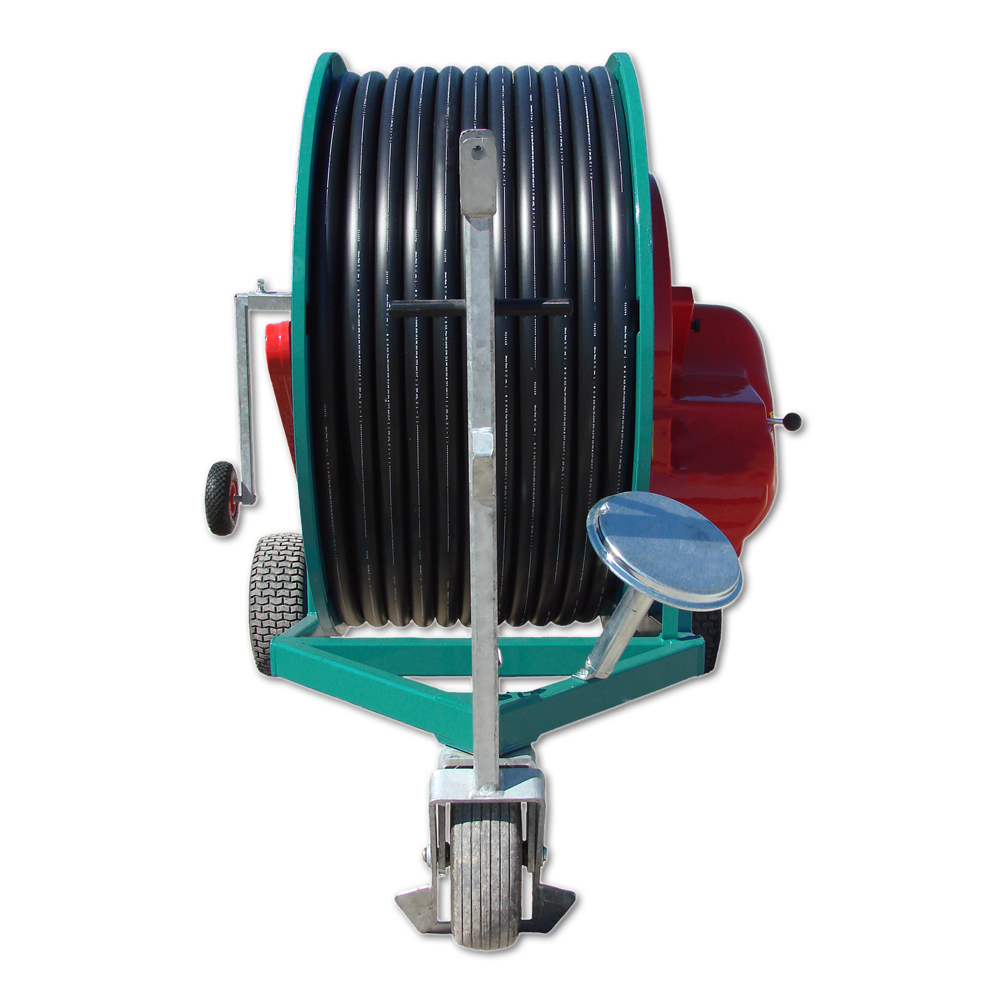

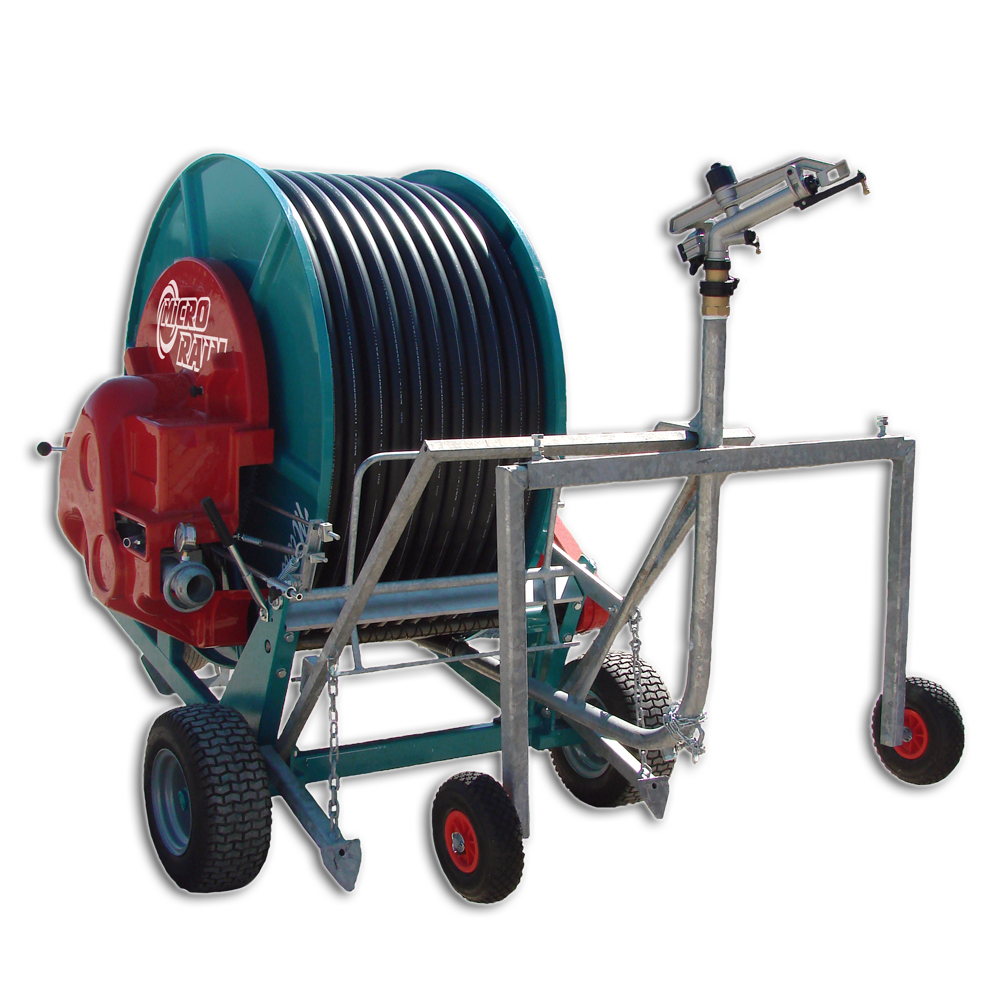

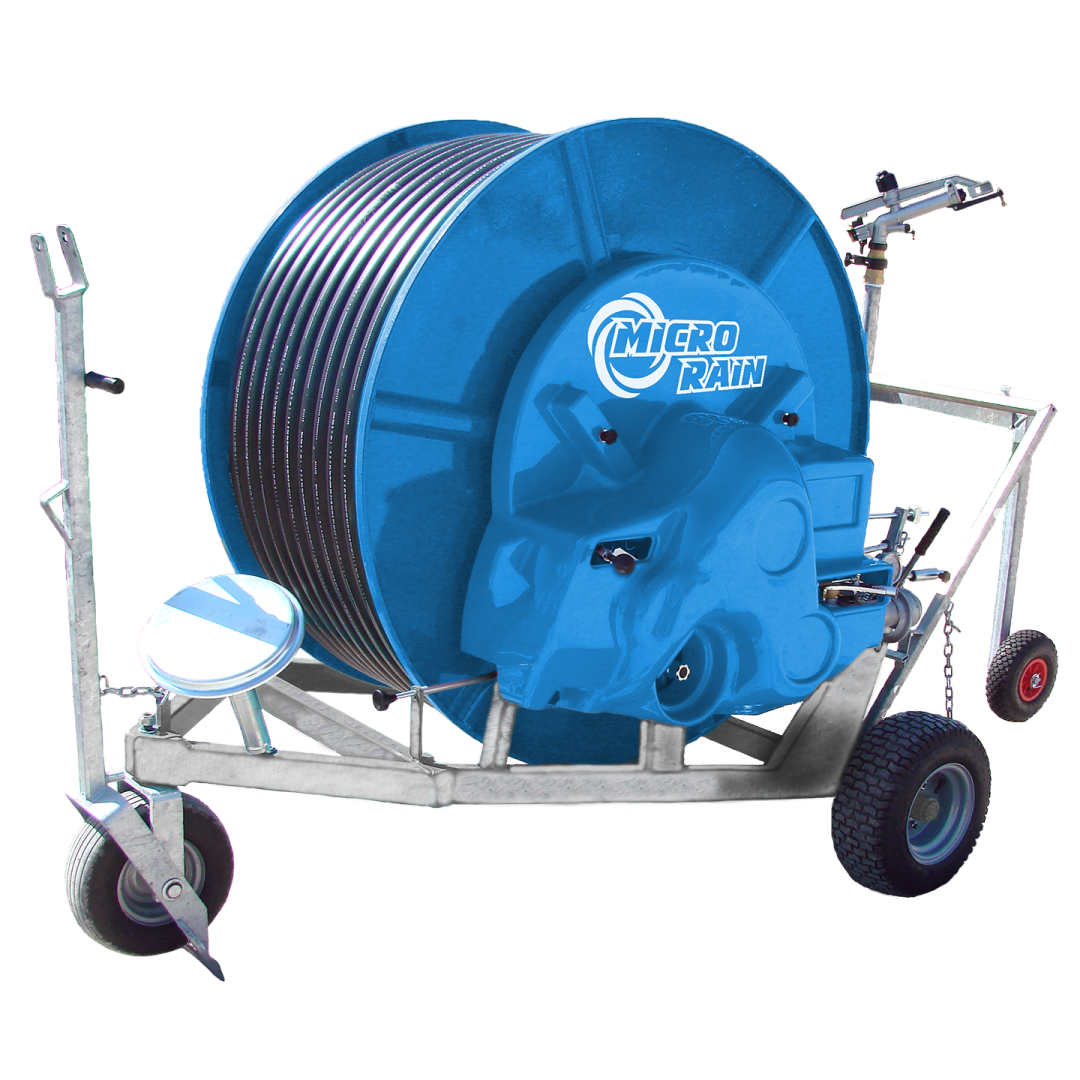

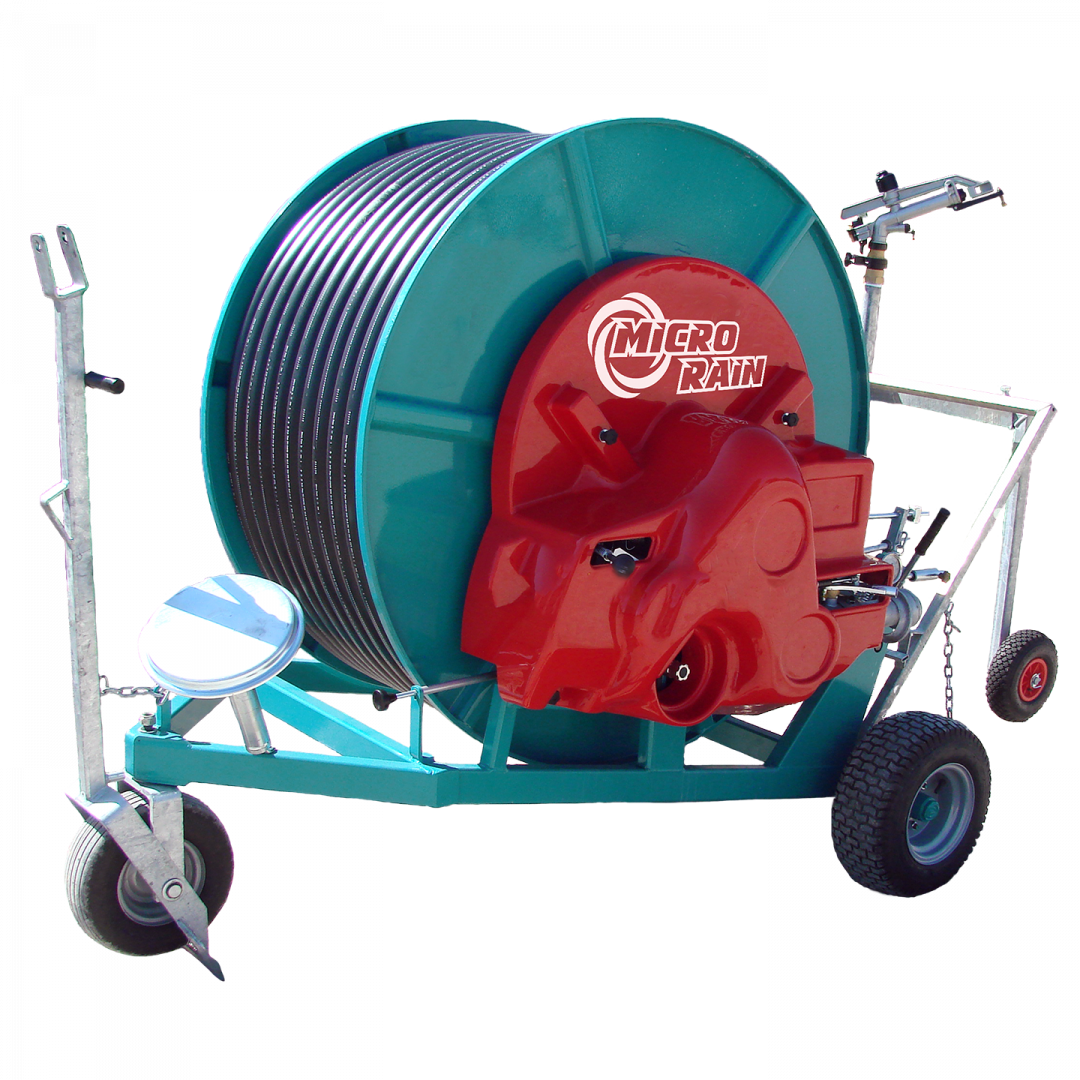

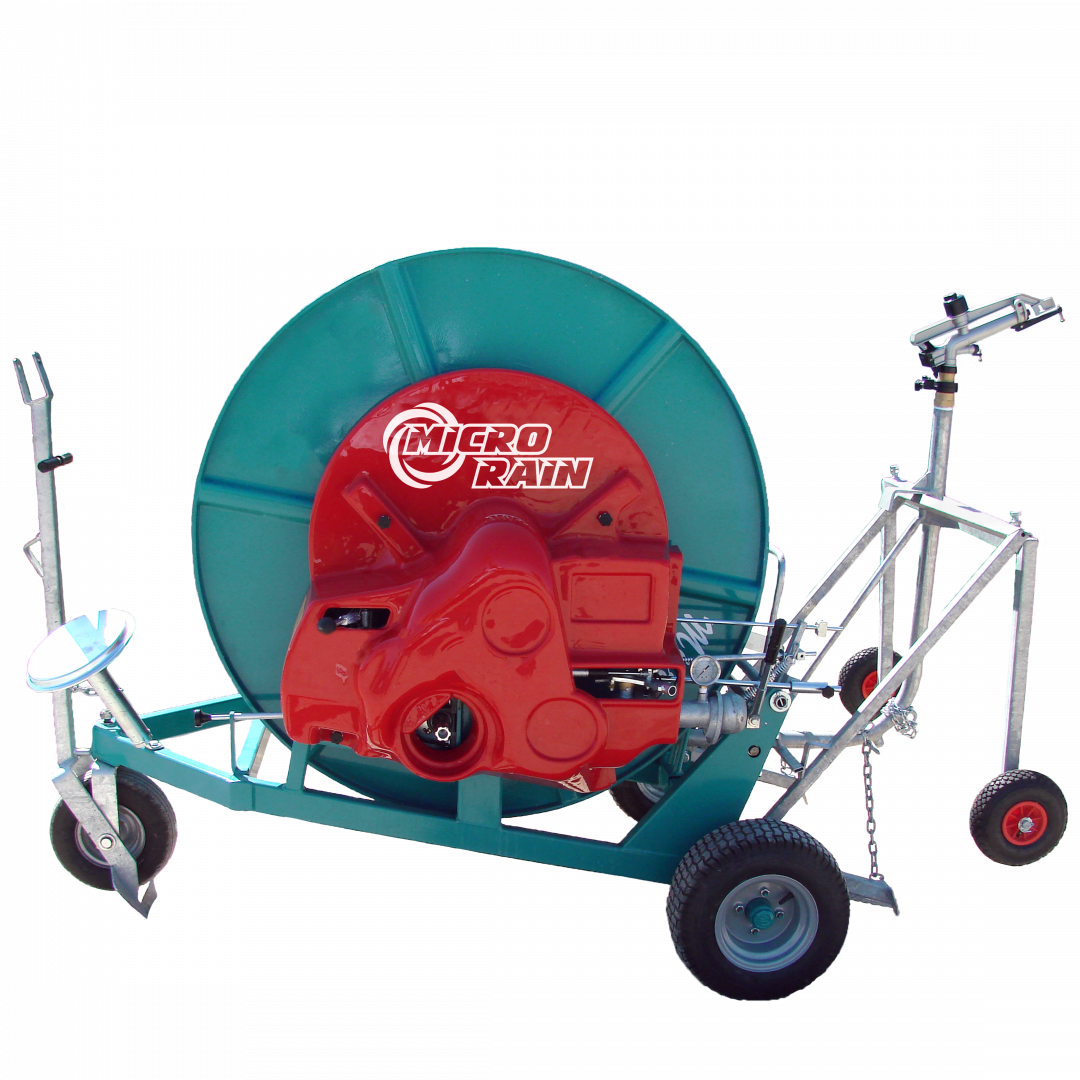

The MR50, 58, and 63 utilize the same chassis and drum size in our large line, and feature automatic cart lift at the completion of a run. The 558 feet hose length on the MR50 is convenient for irrigating longer runs with wetted lengths up to 650 feet. A 5.5 or 9 HP booster kit may be added to increase pressure and performance. Common applications for the MR50 include golf course fairways, driving ranges, cemeteries, wildlife food plots, and municipal parks.

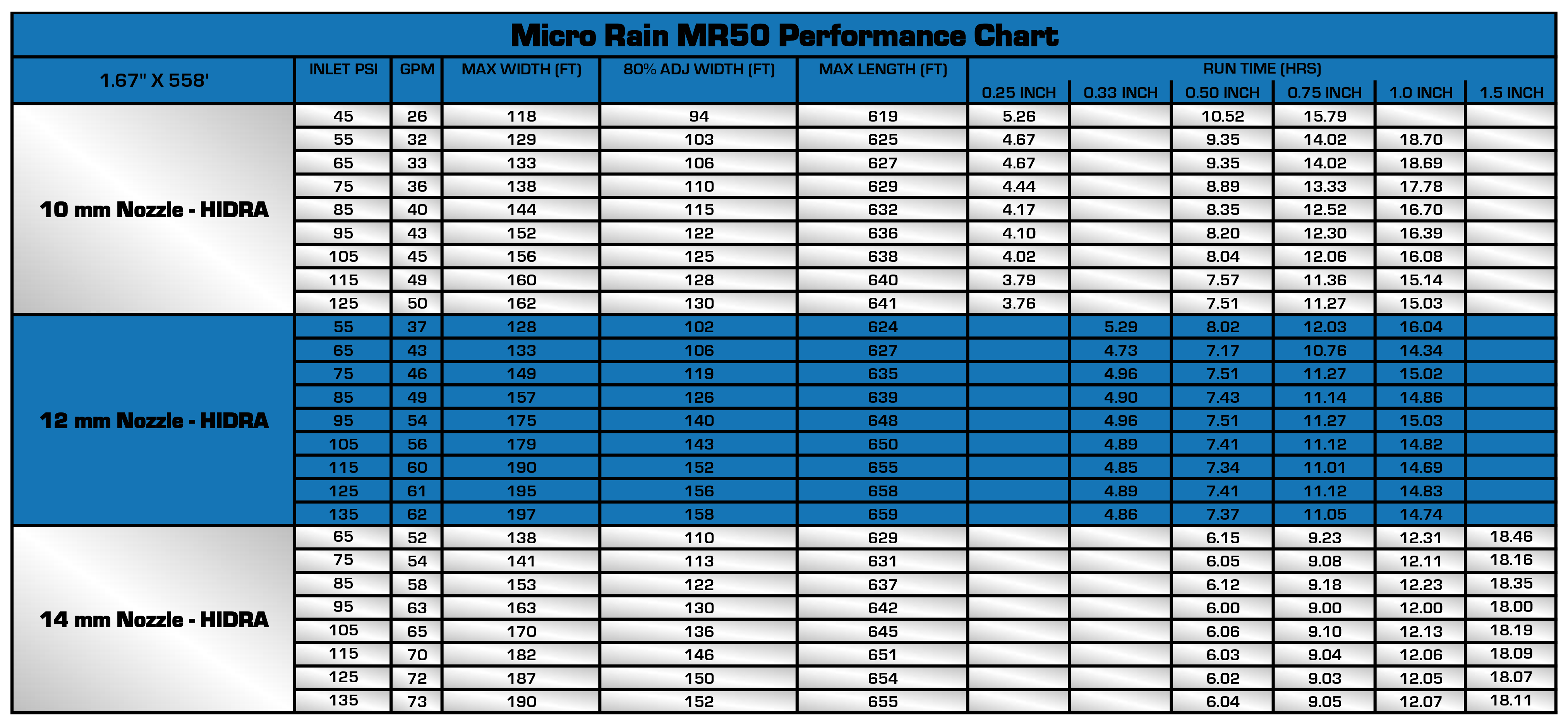

NOTICE: These specifications are for a guide only and are based on theoretical calculations and performance tests. This is to be used as a guide only, as performance may vary under field conditions or when machine speed control adjusted. The combination of gallons per minute, pressure, and atmospheric conditions such as wind speed will determine your performance characteristics. Shortening tube length can also increase the performance of your Micro Rain.


STANDARD FEATURES:

  • Three Wheel Chassis Design for Easy Towing
  • Turbine Operated
  • Automatic Retraction & Shutdown
  • Automatic Cart Lift at Completion of Runs
  • Speed Control for Desired Application Rates
  • Speed Compensation
  • Pressure Gauge to Determine Inlet Pressure
  • Supply Hose (2" x 20')
  • Scrolled Level-Wind to Facilitate Correct Tube Wrapping
  • Tube Mis-Wrap Safety
  • Galvanized, High Sprinkler Cart for Clearance in Tall Crops
  • Part Circle Sprinkler
  • Sprinkler Cart Bracket for Transporting
  • PTO Rewind for Emergency Roll Up of Hose
  • Stabilizer Legs
  • Low Maintenance Wheel Bearings
  • Easy Winter Draining Facilities
  • 1 Year Machine Warranty & 3 Year, 100% Poly Tube Warranty

OPTIONS:

  • 5.5 HP or 9 HP Boost Pump Kit, Pull or Electric Start
  • 5.5 HP Supply Pump
  • High Speed Gearing for Arena or Artificial Turf Applications



          Big Front Wheel                          Hitch

SPECIFICATIONS:

  • Tube I.D. - 1.67"
  • Tube Length - 558'
  • Machine Length - 106"
  • Machine Width - 53"
  • Machine Height - 64"
  • Machine Weight (Dry) - 880 lbs.
  • Palletized Weight - 1,053 lbs.
