Micro Rain MR58RL

Micro Rain MR58RL
Micro Rain MR58RL
Micro Rain MR58RL
Micro Rain MR58RL
Micro Rain MR58RL

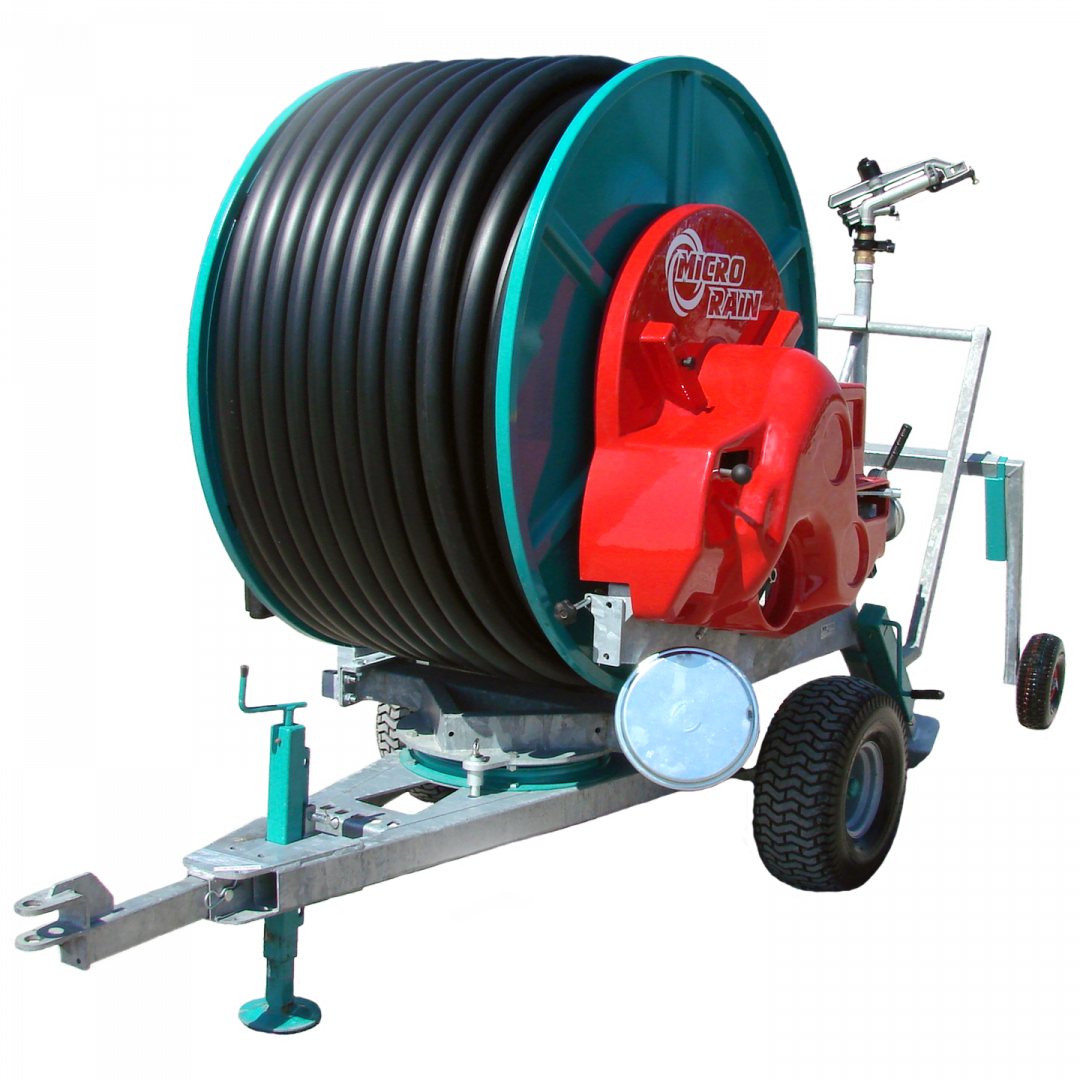

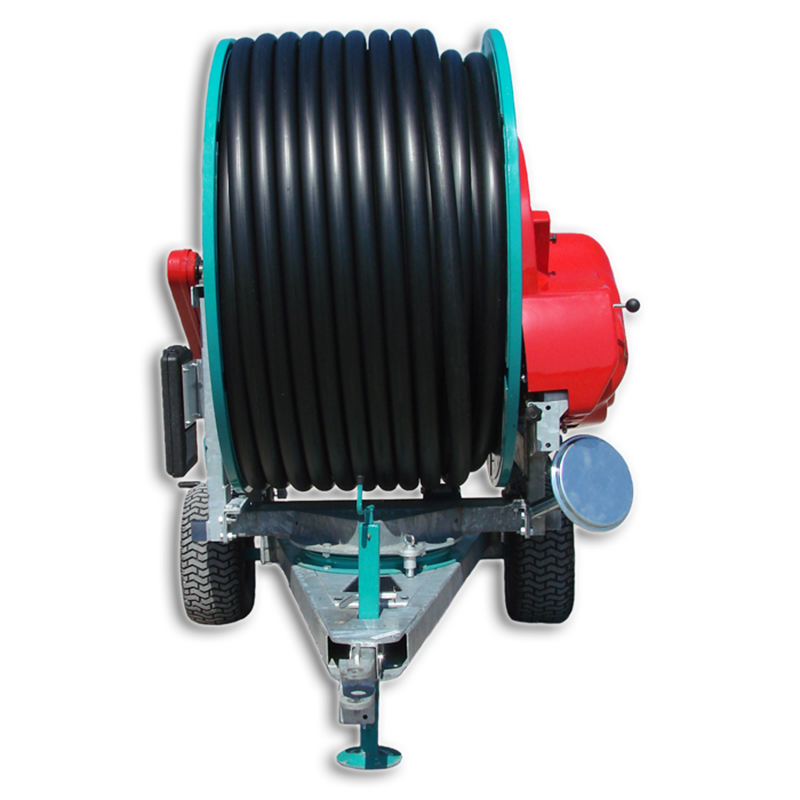

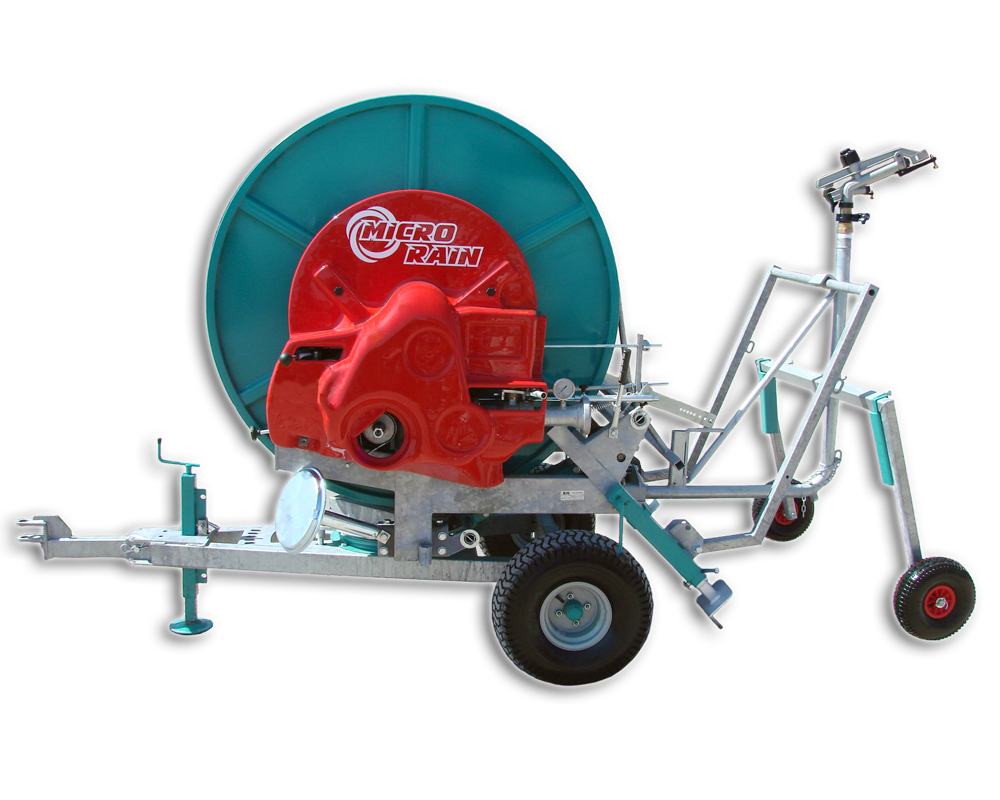

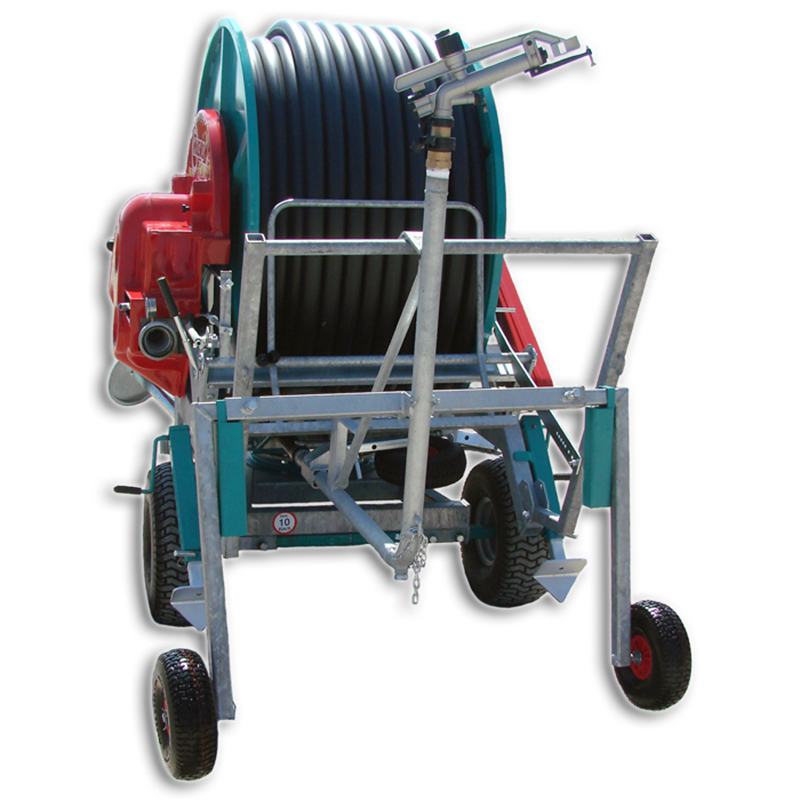

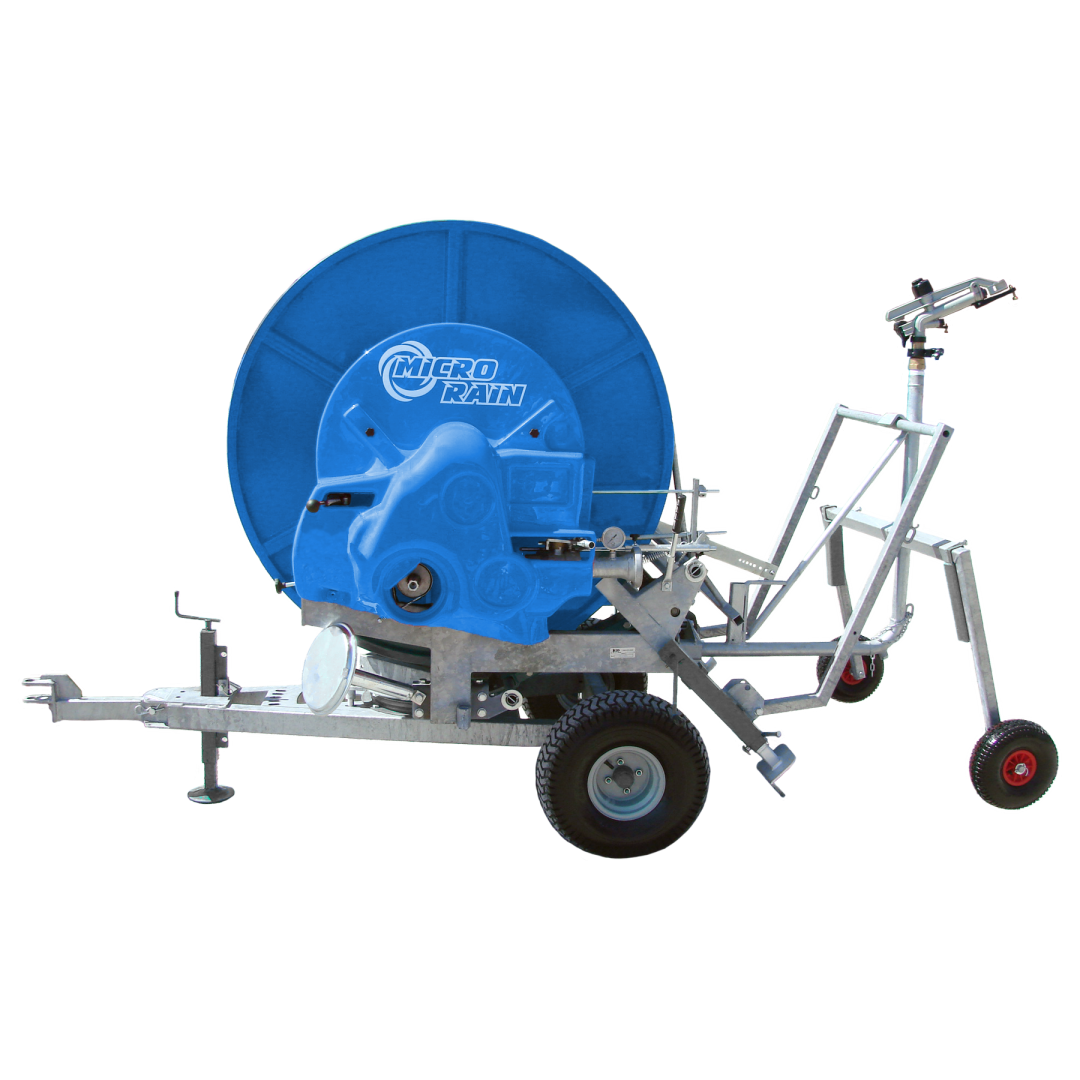

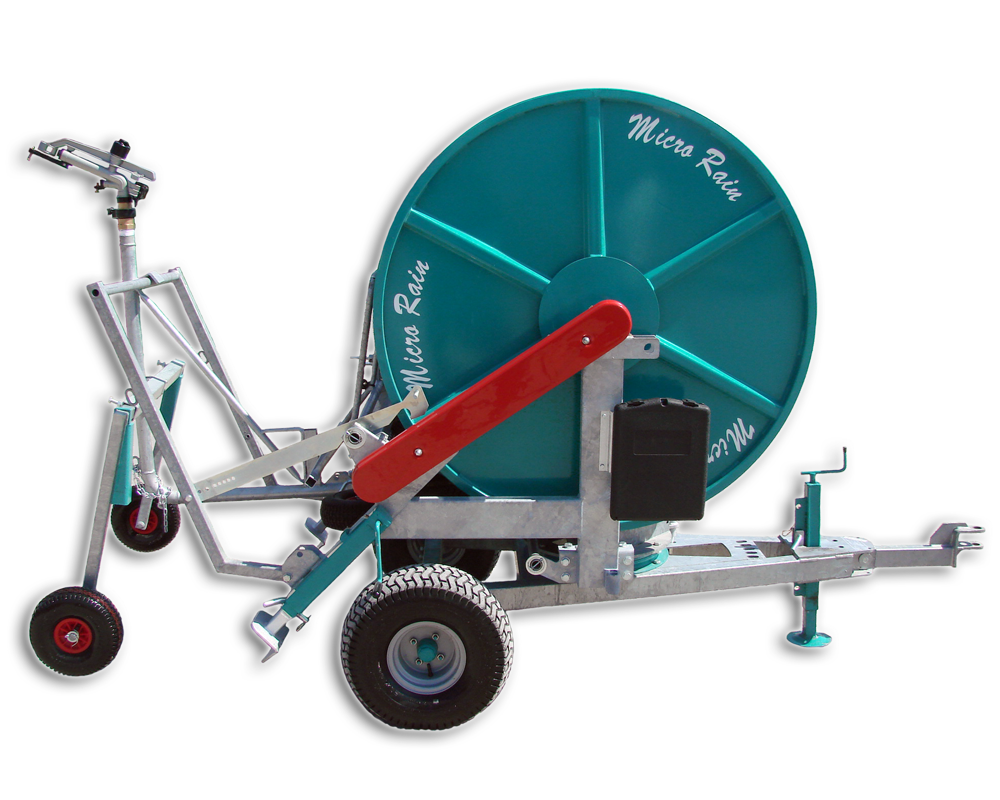

The MR58RL is equipped with all of the great features of the Micro Rain line, and also includes a rotating base and heavy galvanized frame and chassis. The rotating base allows the user to position the machine in the center of the area to be irrigated, rotate the reel 90 degrees and make an initial pull with a 660 feet hose in one direction and upon completion, rotate the reel 180 degrees and make another pull in the opposite direction for a total of up to 1320 feet total length in a single setting! This model is now the largest in the Micro Rain line capable of effectively irrigating up to 25 acres in a wide variety of settings.

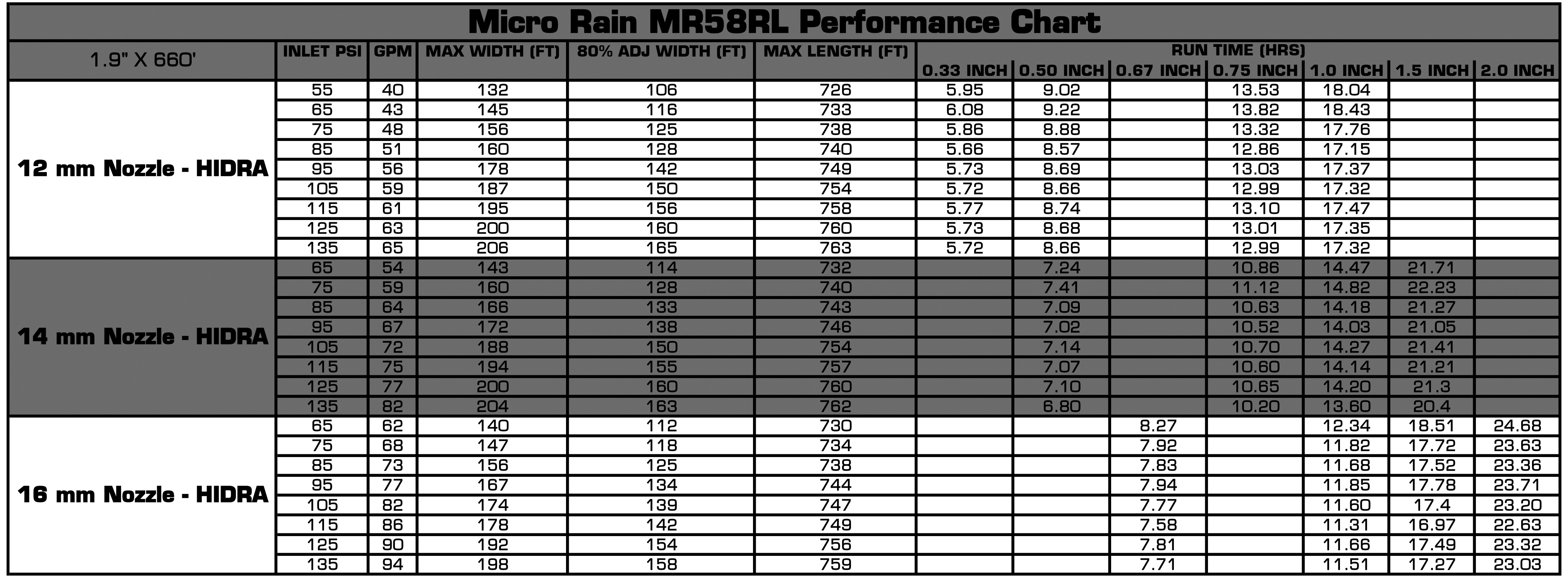

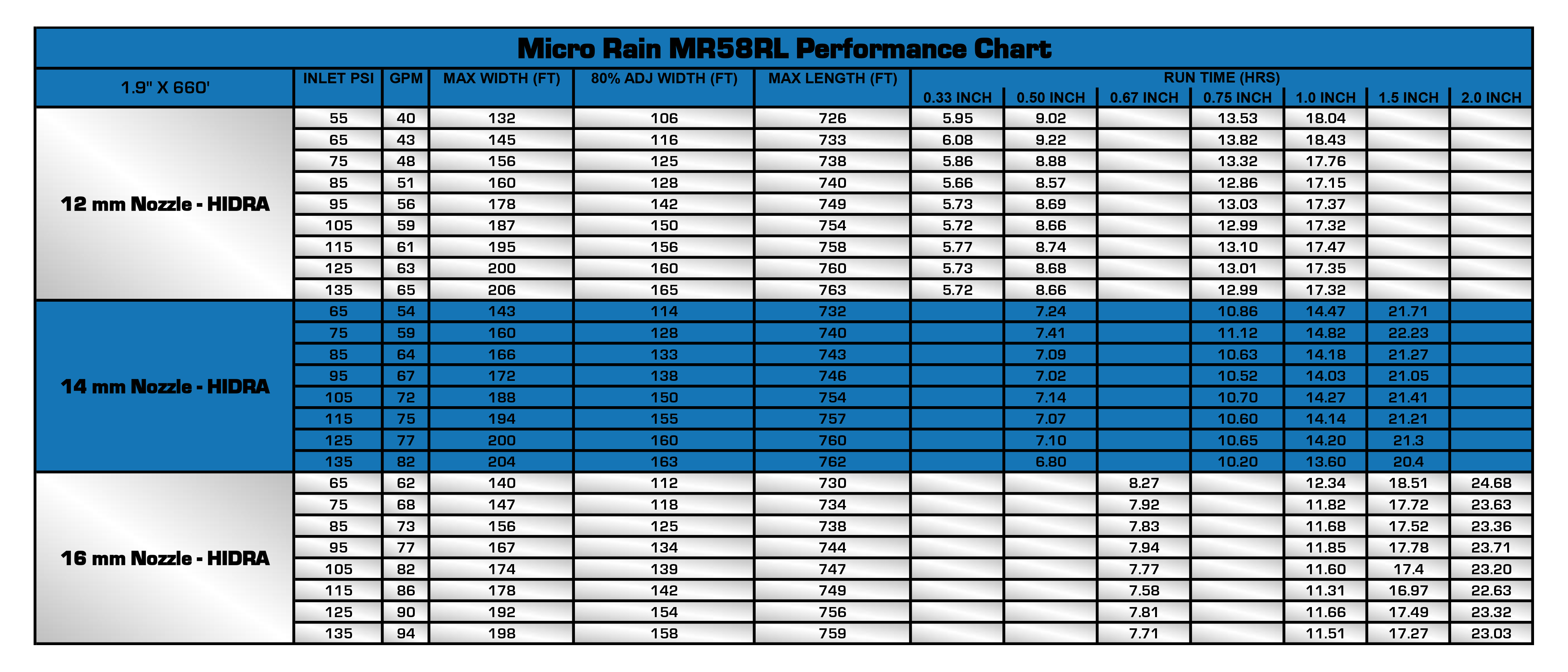

NOTICE: These specifications are for a guide only and are based on theoretical calculations and performance tests. This is to be used as a guide only, as performance may vary under field conditions or when machine speed control adjusted. The combination of gallons per minute, pressure, and atmospheric conditions such as wind speed will determine your performance characteristics. Shortening tube length can also increase the performance of your Micro Rain.


STANDARD FEATURES:

  • Heavy Duty Two Wheel Chassis Design for Easy Towing
  • Turbine Operated
  • Rotating Turntable
  • Automatic Retraction & Shutdown
  • Automatic Cart Lift at Completion of Runs
  • Speed Control for Desired Application Rates
  • Speed Compensation
  • Pressure Gauge to Determine Inlet Pressure
  • Supply Hose (2" x 20')
  • Scrolled Level-Wind to Facilitate Correct Tube Wrapping
  • Tube Mis-Wrap Safety
  • Galvanized, High Sprinkler Cart for Clearance in Tall Crops
  • Part Circle Sprinkler
  • Sprinkler Cart Bracket for Transporting
  • PTO Rewind for Emergency Roll Up of Hose
  • Stabilizer Legs
  • Low Maintenance Wheel Bearings
  • Easy Winter Draining Facilities
  • 1 Year Machine Warranty & 3 Year, 100% Poly Tube Warranty

OPTIONS:

  • 9 HP Boost Pump Kit, Pull Start
  • 13 HP Supply Pump

SPECIFICATIONS:

  • Tube I.D. - 1.90"
  • Tube Length - 660'
  • Machine Length - 132"
  • Machine Width - 58"
  • Machine Height - 75"
  • Machine Weight (Dry) - 1,420 lbs.
  • Palletized Weight - 1,730 lbs.
