See video

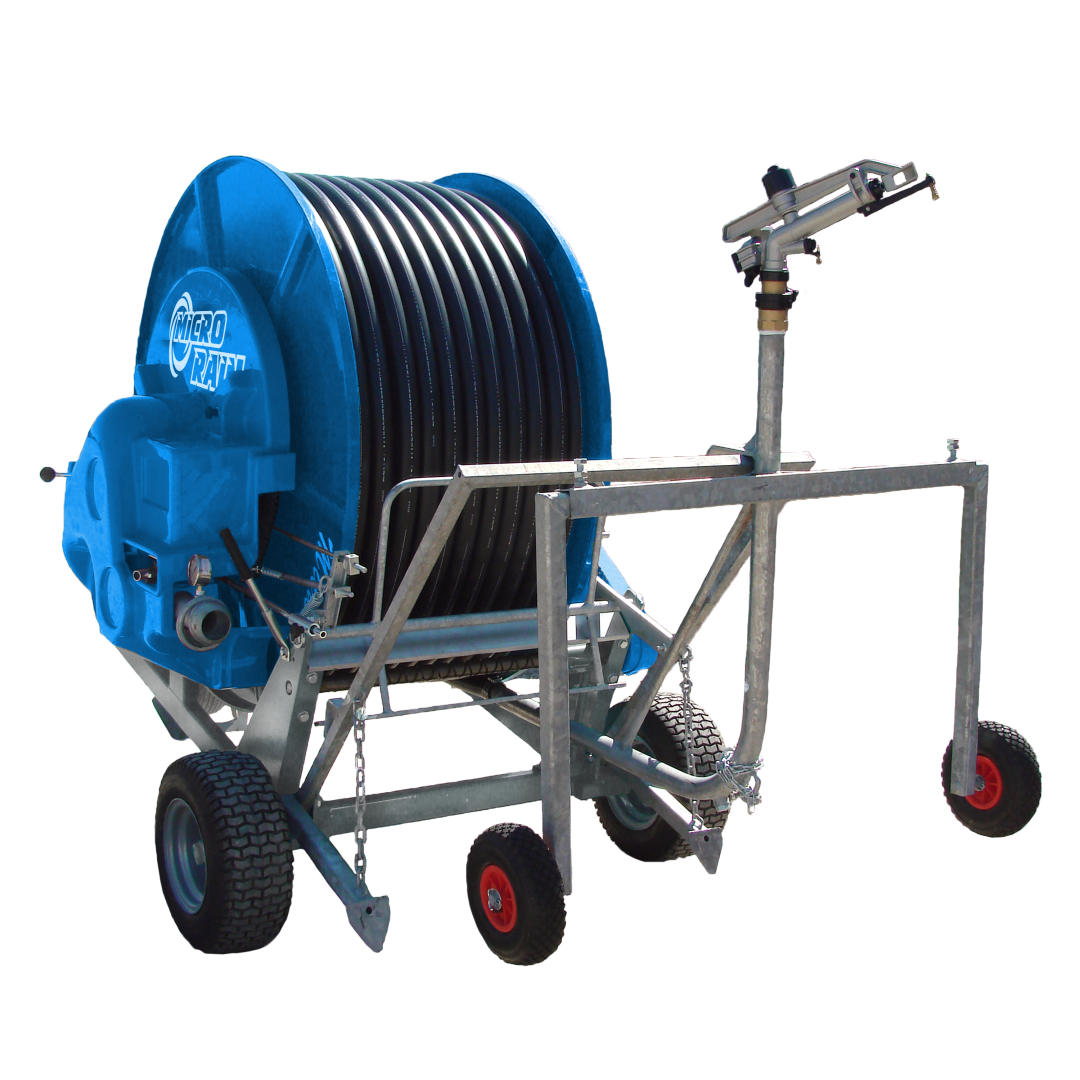

The MR63 is capable of delivering the largest volumes in Micro Rain line! This model boasts a large diameter 2.1 inch hose that is 328 feet in length. If large amounts of water are available for use, the MR63 can utilize up to 140 gallons per minute for the serious irrigator. Uses for the MR63 include football fields with both natural and artificial surfaces where large amounts of water need to be applied in a short amount of time. Vegetable farms, sod farms, and equestrian facilities with large arenas also benefit from the MR63’s ability to irrigate over 200 feet widths and up to 450 feet in length.

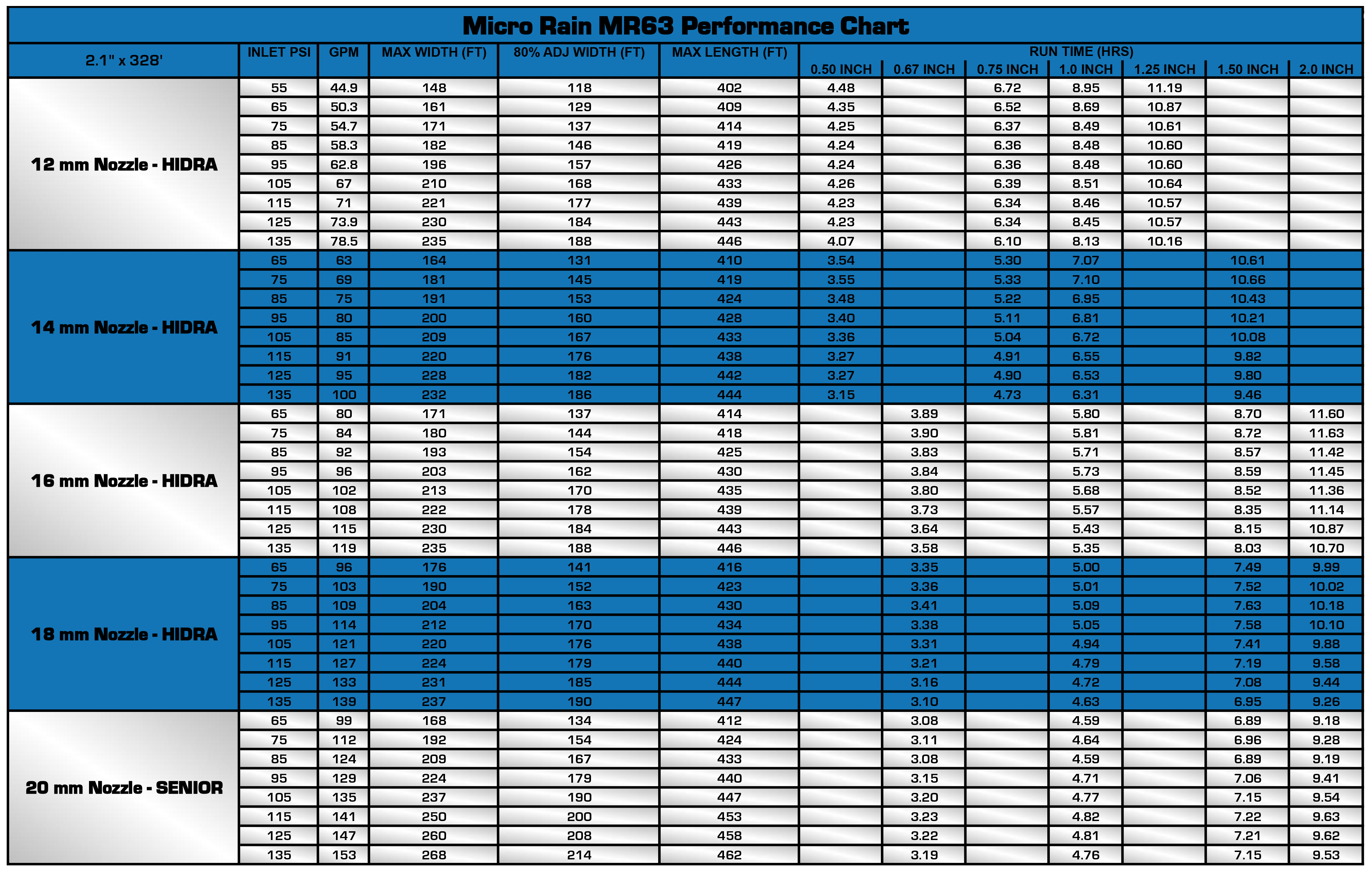

NOTICE: These specifications are for a guide only and are based on theoretical calculations and performance tests. This is to be used as a guide only, as performance may vary under field conditions or when machine speed control adjusted. The combination of gallons per minute, pressure, and atmospheric conditions such as wind speed will determine your performance characteristics. Shortening tube length can also increase the performance of your Micro Rain.


STANDARD FEATURES:

  • Three Wheel Chassis Design for Easy Towing
  • Turbine Operated
  • Automatic Retraction & Shutdown
  • Automatic Cart Lift at Completion of Runs
  • Speed Control for Desired Application Rates
  • Speed Compensation
  • Pressure Gauge to Determine Inlet Pressure
  • Supply Hose (2" x 20')
  • Scrolled Level-Wind to Facilitate Correct Tube Wrapping
  • Tube Mis-Wrap Safety
  • Galvanized, High Sprinkler Cart for Clearance in Tall Crops
  • Part Circle Sprinkler
  • Sprinkler Cart Bracket for Transporting
  • PTO Rewind for Emergency Roll Up of Hose
  • Stabilizer Legs
  • Low Maintenance Wheel Bearings
  • Easy Winter Draining Facilities
  • 1 Year Machine Warranty & 3 Year, 100% Poly Tube Warranty

OPTIONS:

  • 9 HP Boost Pump Kit, Pull or Electric Start
  • 5.5 HP Supply Pump
  • High Speed Gearing for Arena or Artificial Turf Applications



                  Big Front Wheel                                    Hitch

SPECIFICATIONS:

  • Tube I.D. - 2.10"
  • Tube Length - 328'
  • Machine Length - 106"
  • Machine Width - 53"
  • Machine Height - 64"
  • Machine Weight (Dry) - 880 lbs.
  • Palletized Weight - 1,053 lbs.
