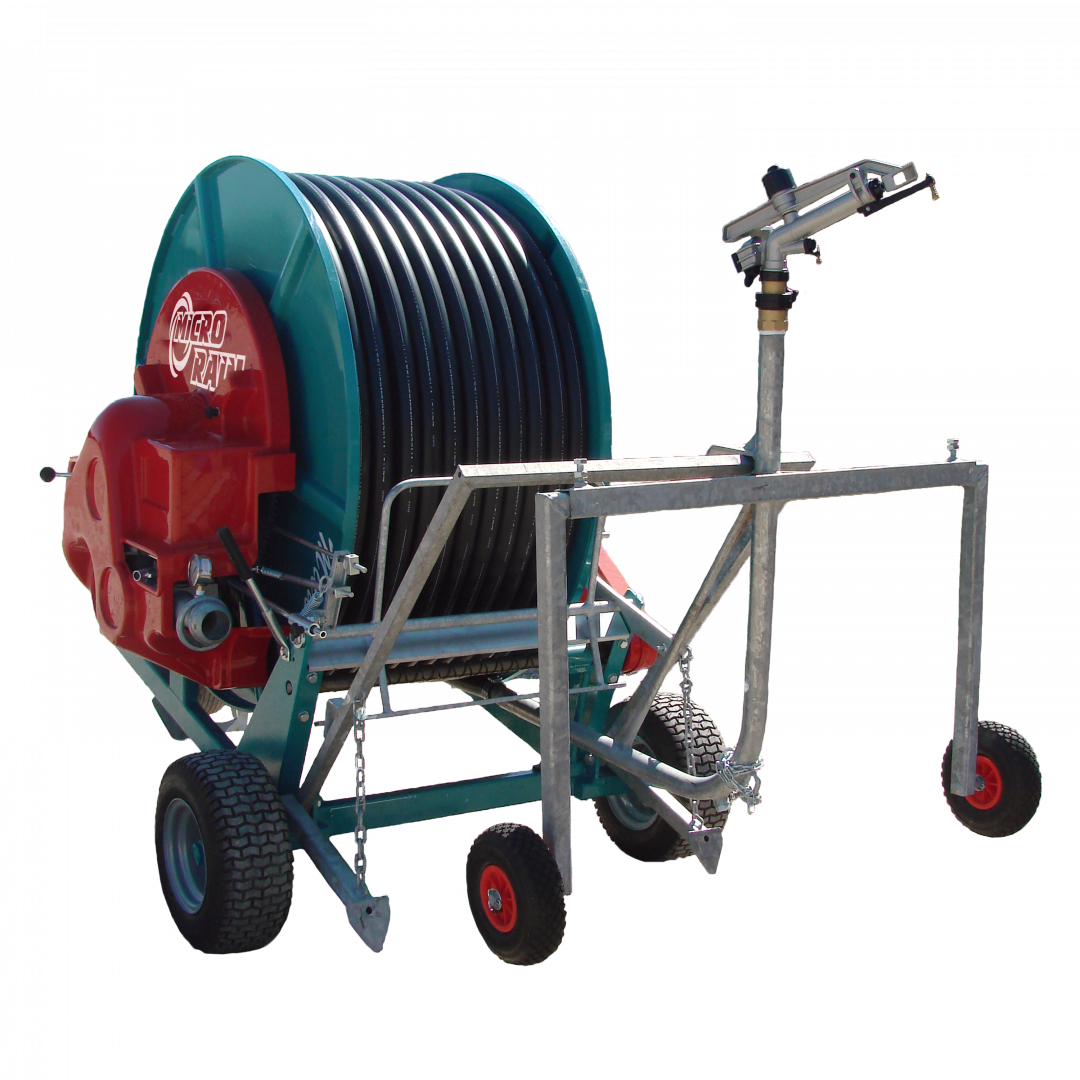

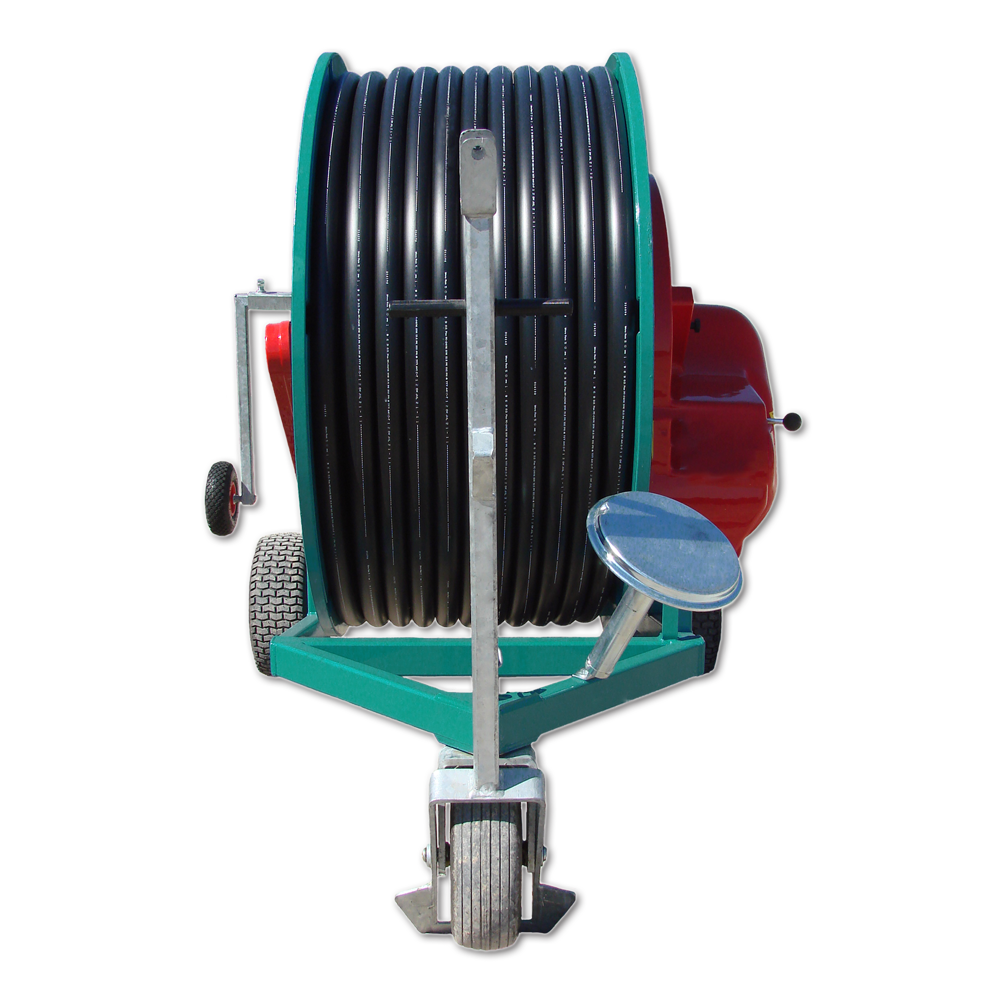

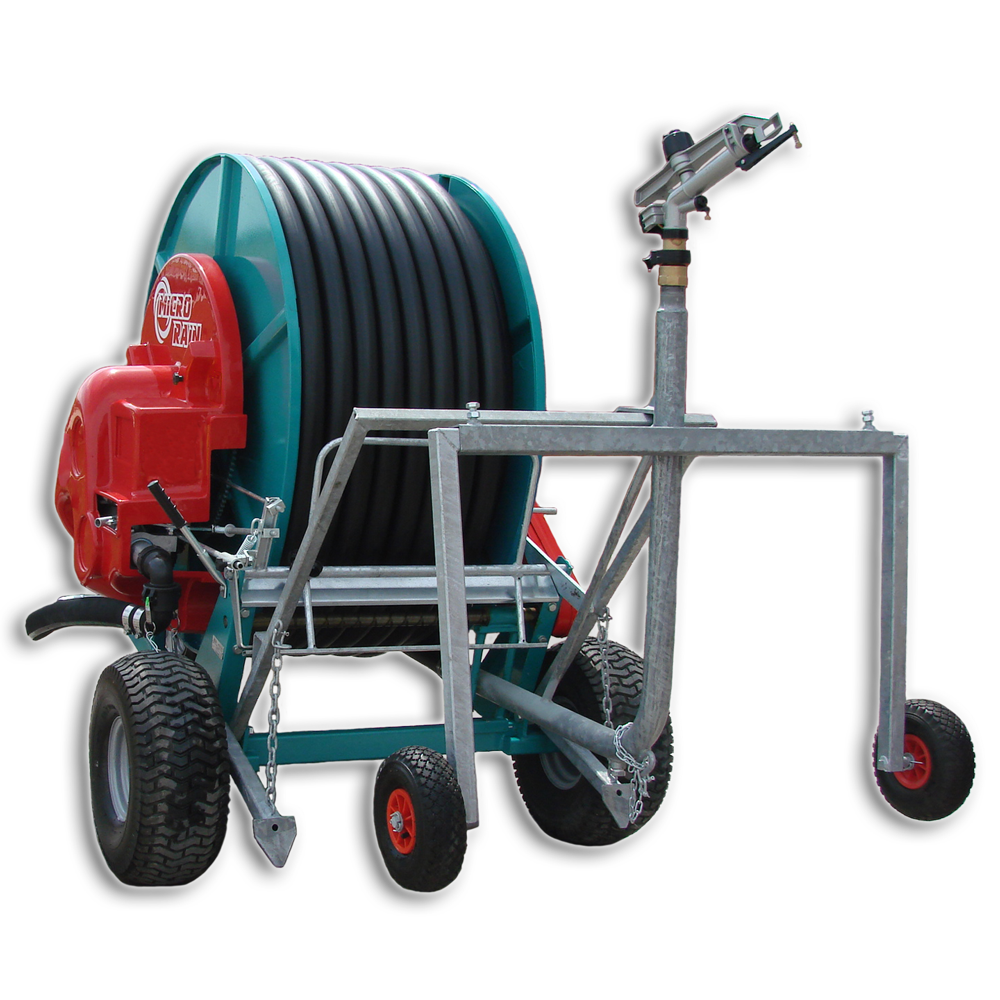

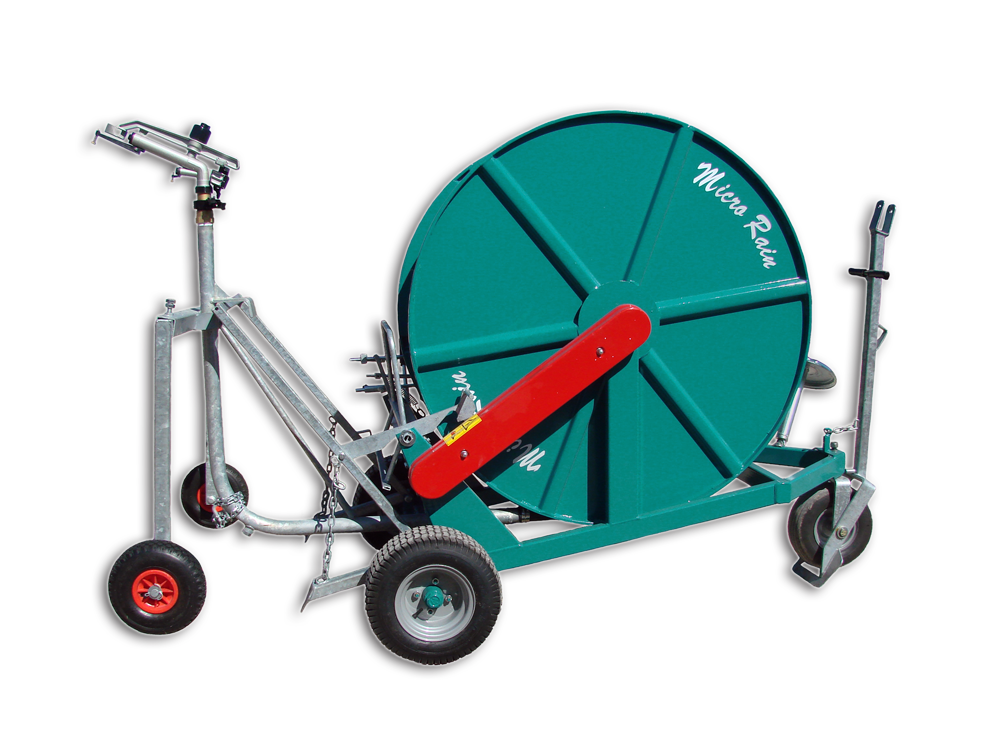

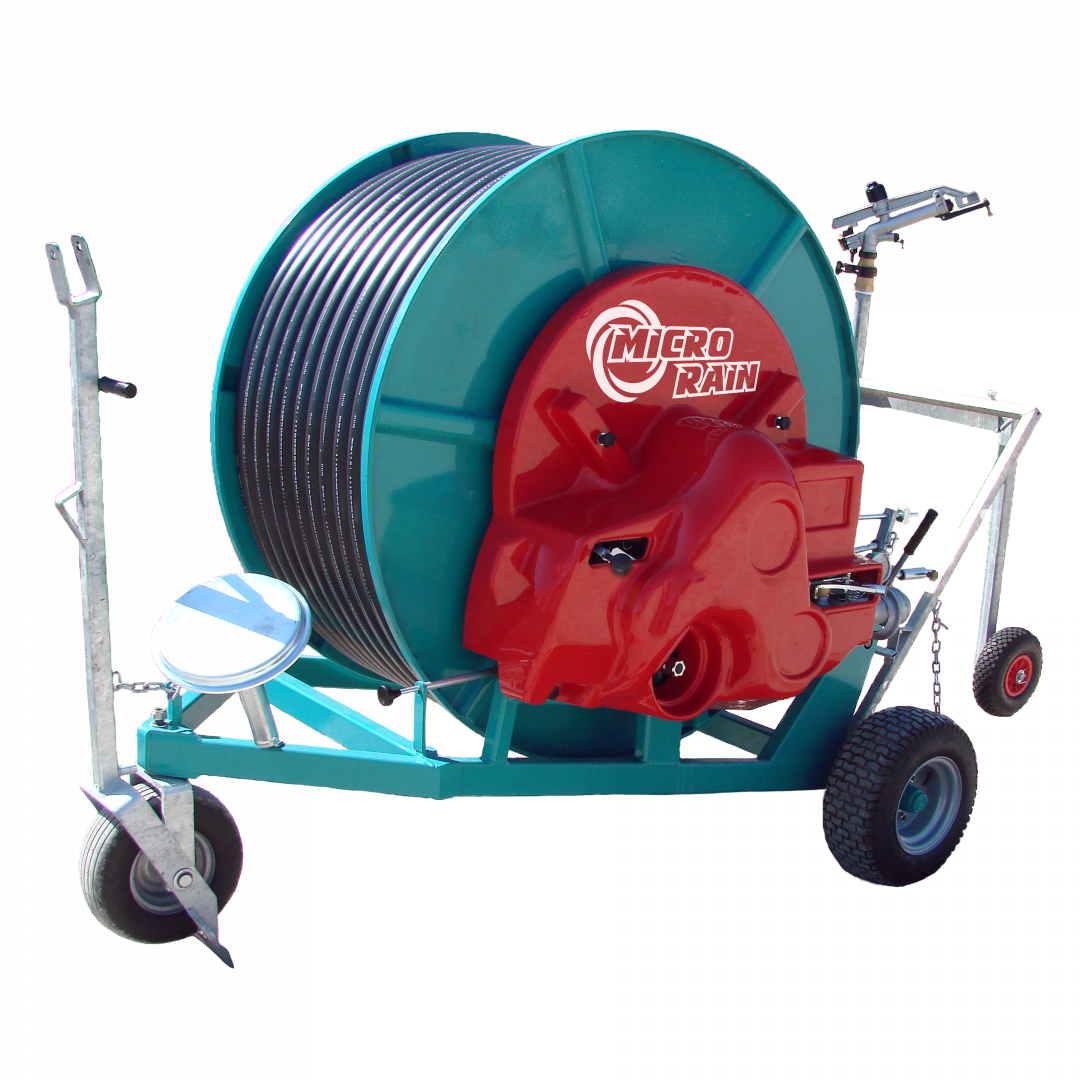

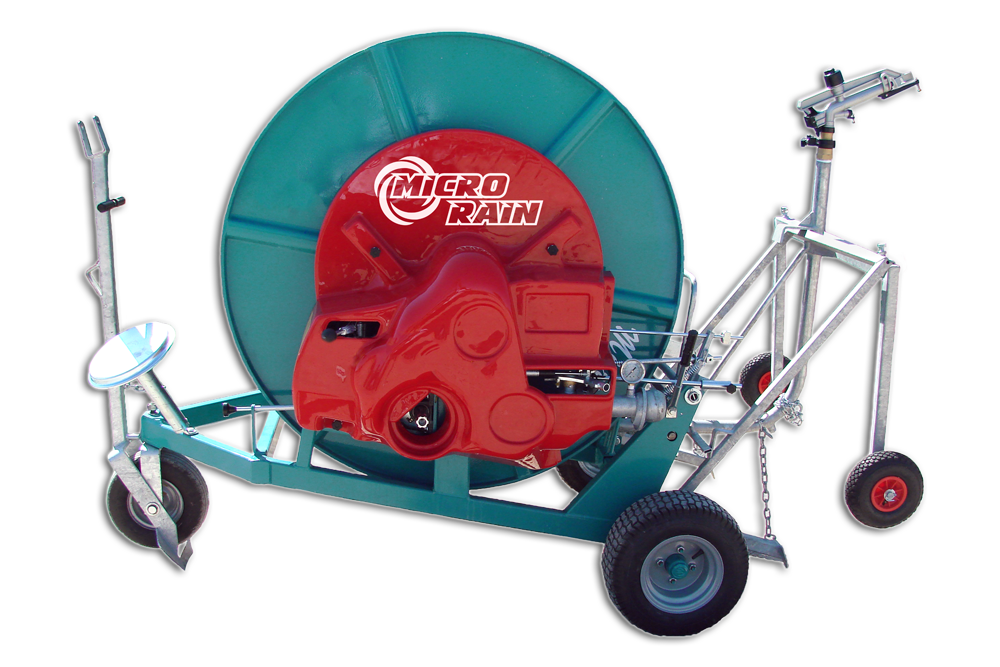

Micro Rain MR58

The MR58 carries 460 feet of tube length, and is a good fit for many applications. With flows up to 100 gallons per minute, the MR 58 is capable of watering up to 2 acres in a single pass! This model is widely used for larger sports fields, hobby farms, parks, polo fields, and more. A powerful 9 HP booster kit may be added for attaining maximum coverage.

MR58

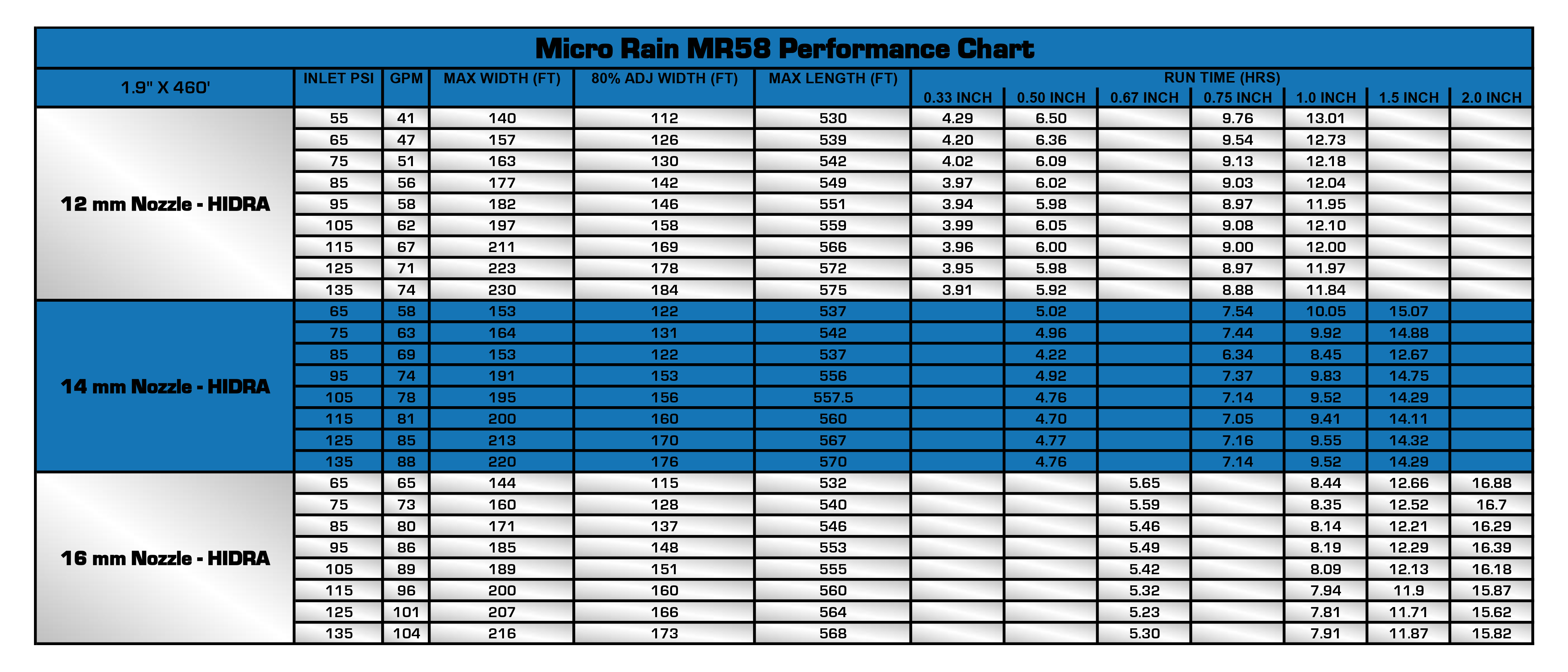

NOTICE: These specifications are for a guide only and are based on theoretical calculations and performance tests. This is to be used as a guide only, as performance may vary under field conditions or when machine speed control adjusted. The combination of gallons per minute, pressure, and atmospheric conditions such as wind speed will determine your performance characteristics. Shortening tube length can also increase the performance of your Micro Rain.

  • Three Wheel Chassis Design for Easy Towing
  • Turbine Operated
  • Automatic Retraction & Shutdown
  • Automatic Cart Lift at Completion of Runs
  • Speed Control for Desired Application Rates
  • Speed Compensation
  • Pressure Gauge to Determine Inlet Pressure
  • Supply Hose (2" x 20')
  • Scrolled Level-Wind to Facilitate Correct Tube Wrapping
  • Tube Mis-Wrap Safety
  • Galvanized, High Sprinkler Cart for Clearance in Tall Crops
  • Part Circle Sprinkler
  • Sprinkler Cart Bracket for Transporting
  • PTO Rewind for Emergency Roll Up of Hose
  • Stabilizer Legs
  • Low Maintenance Wheel Bearings
  • Easy Winter Draining Facilities
  • 1 Year Machine Warranty & 3 Year, 100% Poly Tube Warranty
  • 9 HP Boost Pump Kit, Pull or Electric Start
  • 5.5 HP Supply Pump
  • High Speed Gearing for Arena or Artificial Turf Applications
  • Big Front Wheel
  • Hitch
  • Tube I.D. - 1.90"
  • Tube Length - 460'
  • Machine Length - 106"
  • Machine Width - 53"
  • Machine Height - 64"
  • Machine Weight (Dry) - 880 lbs.
  • Palletized Weight - 1,053 lbs.
