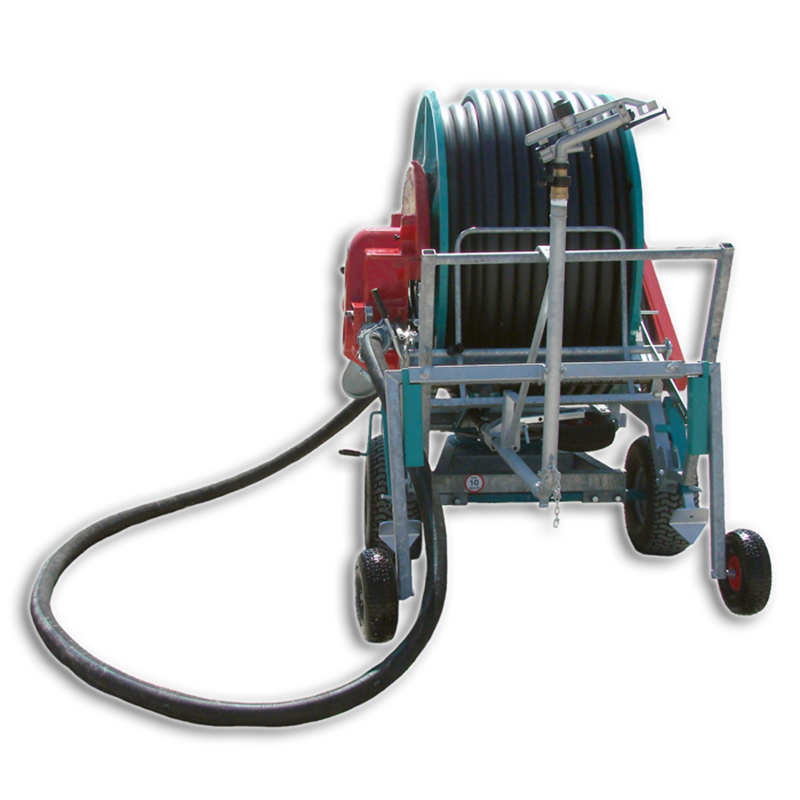

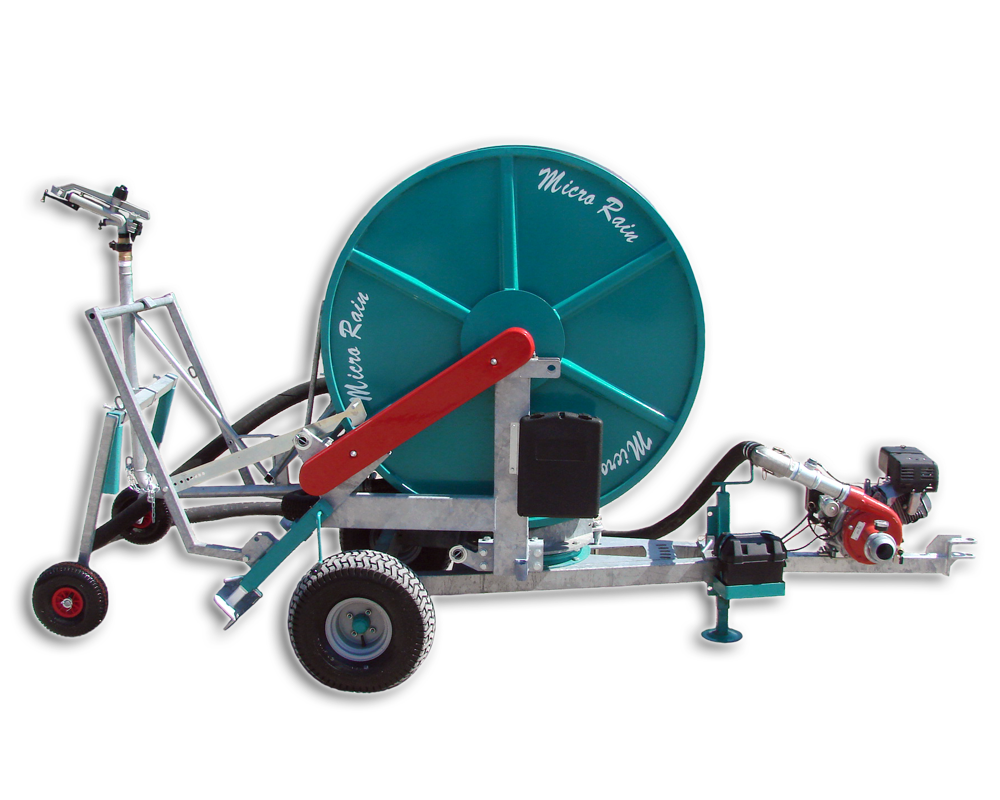

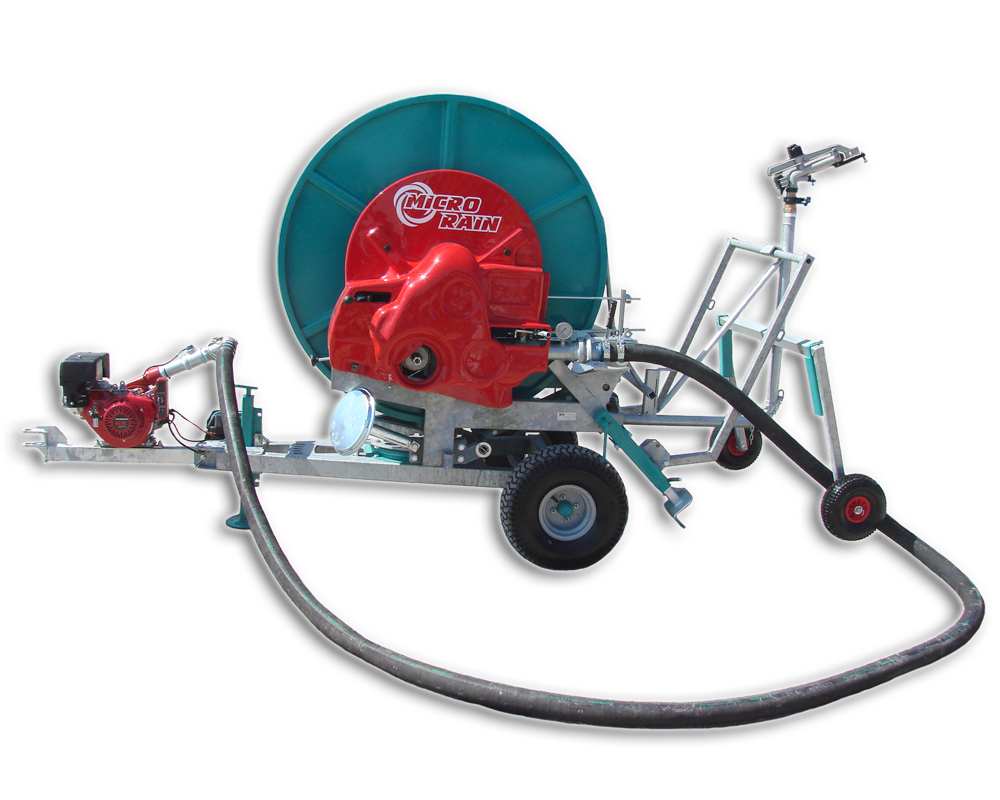

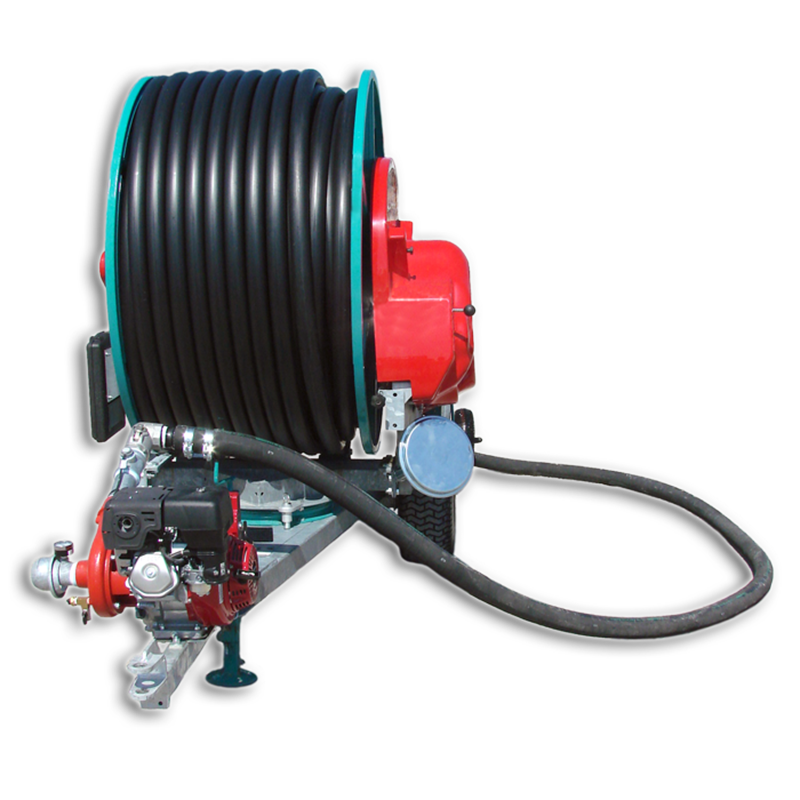

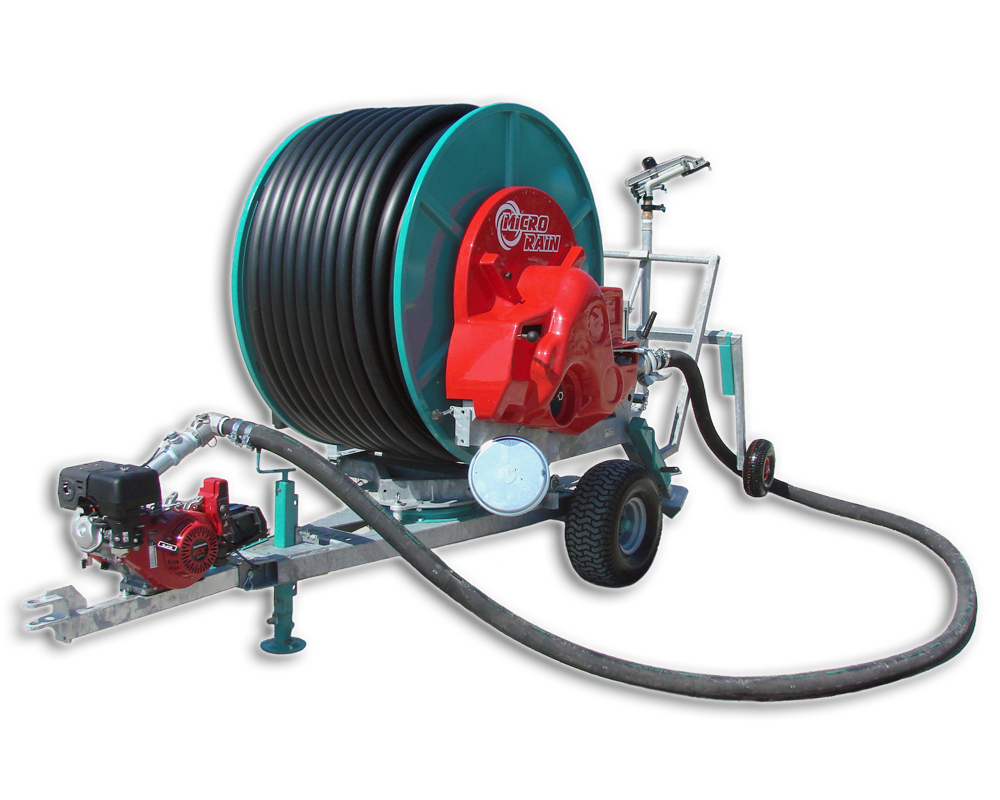

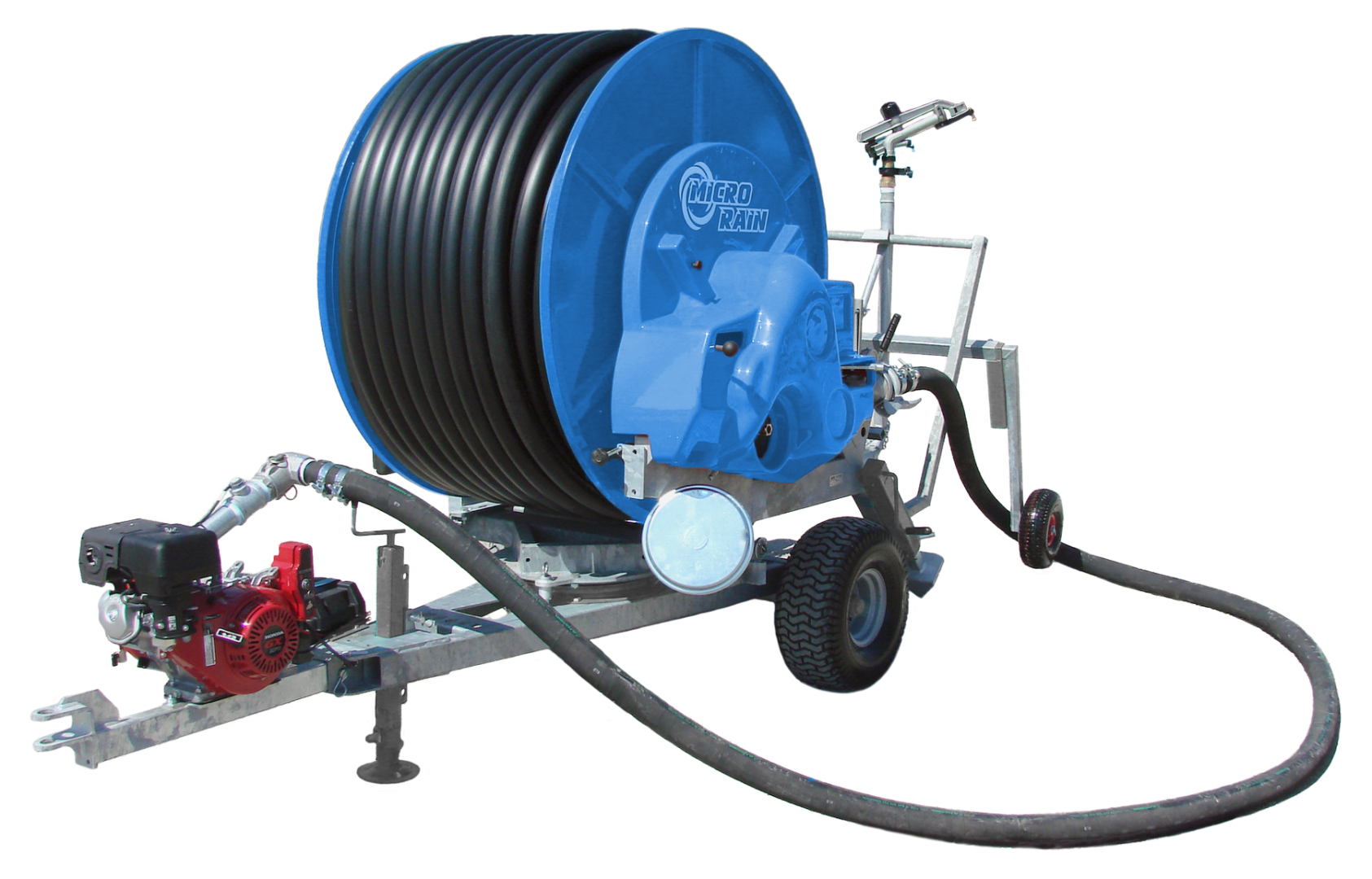

Micro Rain MR58RLBP w/ 9HP Honda Boost Pump

The MR58RL-BPP is equipped with all of the great features of the MR58RL base model and also includes a 9 horsepower booster package which includes a reliable GX270 Honda engine with high pressure booster pump, auxilliary 7 gallon fuel tank with mount bracket, and flow sensor shut down system.  The boost pump will increase pressure up to 75 psi above your incoming pressure at the inlet of the machine.  This allows maximum coverage of over 750 feet long and over 190 feet wide per run!

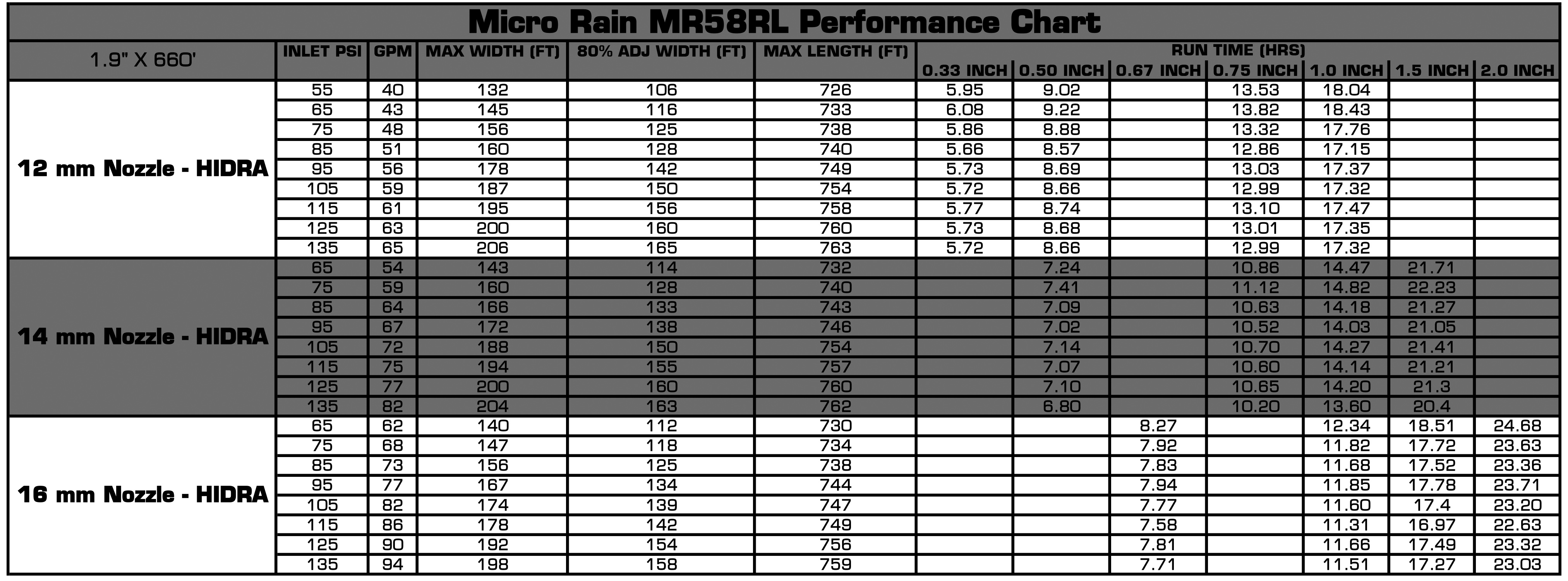

NOTICE: These specifications are for a guide only and are based on theoretical calculations and performance tests. This is to be used as a guide only, as performance may vary under field conditions or when machine speed control adjusted. The combination of gallons per minute, pressure, and atmospheric conditions such as wind speed will determine your performance characteristics. Shortening tube length can also increase the performance of your Micro Rain.

  • Heavy Duty Two Wheel Chassis Design for Easy Towing
  • Turbine Operated
  • Rotating Turntable
  • Automatic Retraction & Shutdown
  • Automatic Cart Lift at Completion of Runs
  • Speed Control for Desired Application Rates
  • Speed Compensation
  • Pressure Gauge to Determine Inlet Pressure
  • Supply Hose (2" x 20')
  • Scrolled Level-Wind to Facilitate Correct Tube Wrapping
  • Tube Mis-Wrap Safety
  • Galvanized, High Sprinkler Cart for Clearance in Tall Crops
  • Part Circle Sprinkler
  • Sprinkler Cart Bracket for Transporting
  • PTO Rewind for Emergency Roll Up of Hose
  • Stabilizer Legs
  • Low Maintenance Wheel Bearings
  • Easy Winter Draining Facilities
  • 1 Year Machine Warranty & 3 Year, 100% Poly Tube Warranty
  • 9 HP Boost Pump Kit, Pull Start
  • 13 HP Supply Pump
  • Tube I.D. - 1.90"
  • Tube Length - 660'
  • Machine Length - 132"
  • Machine Width - 58"
  • Machine Height - 75"
  • Machine Weight (Dry) - 1,420 lbs.
  • Palletized Weight - 1,730 lbs.
